Product Detail
Organic fertilizer ball granulator
Capacity : (T/H): 3.5-6 t/h
materials particle size:(mm): 0.3-0.5
Power: KW: 123 kw
Model: KHL-700
Detail

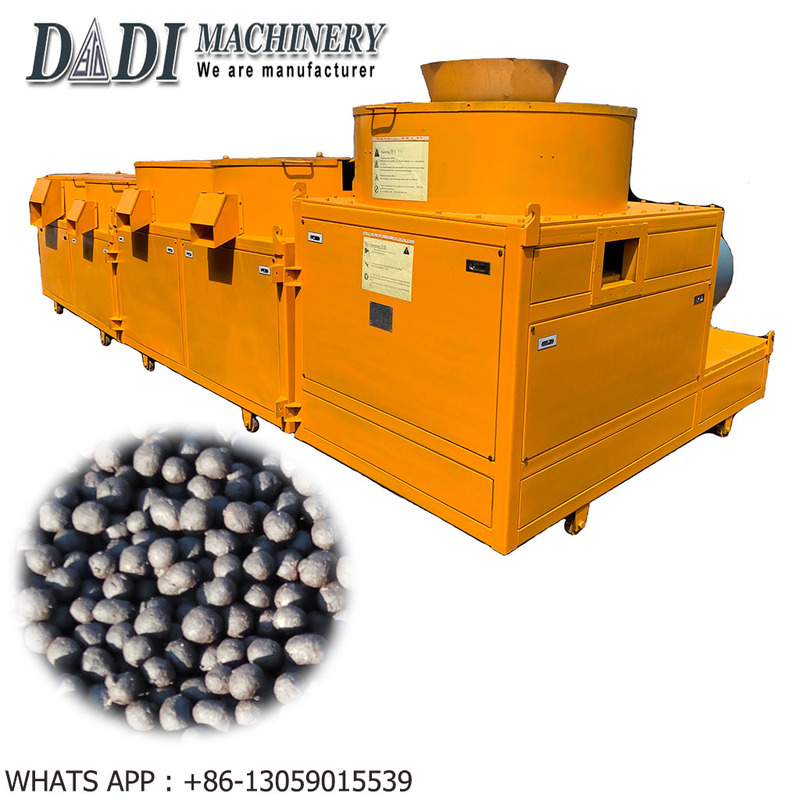

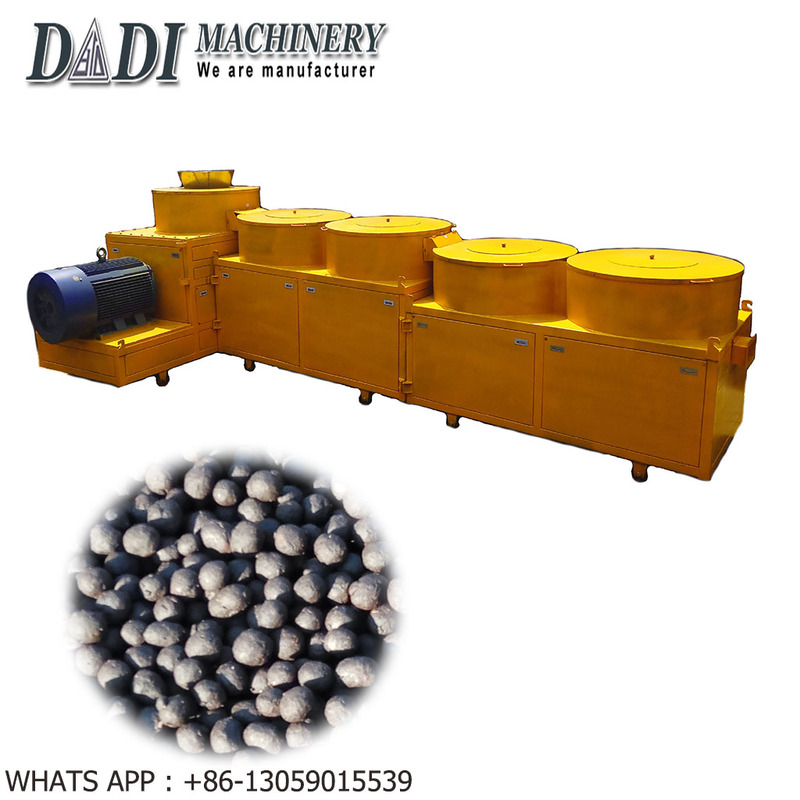

KHL-700 organic fertilizer ball granulator


You can also find this video of fertilizer ball granulator from You tube "   https://youtu.be/ltFEzG6V8hE   "

Model :

KHL-700

Capacity: T/h

3.5-6

Input moisture content required:   %

30-35

Moisture reduce after granulation : %

3

Input material particle size required : mm

0.3-0.5

Rate of finished products:%

90

Voltage : V

380 (optional)

Granules size: mm

3.5-5.5

Power: KW

123

Total weight:Kg

8000

Size: m

7-2.6-1.8

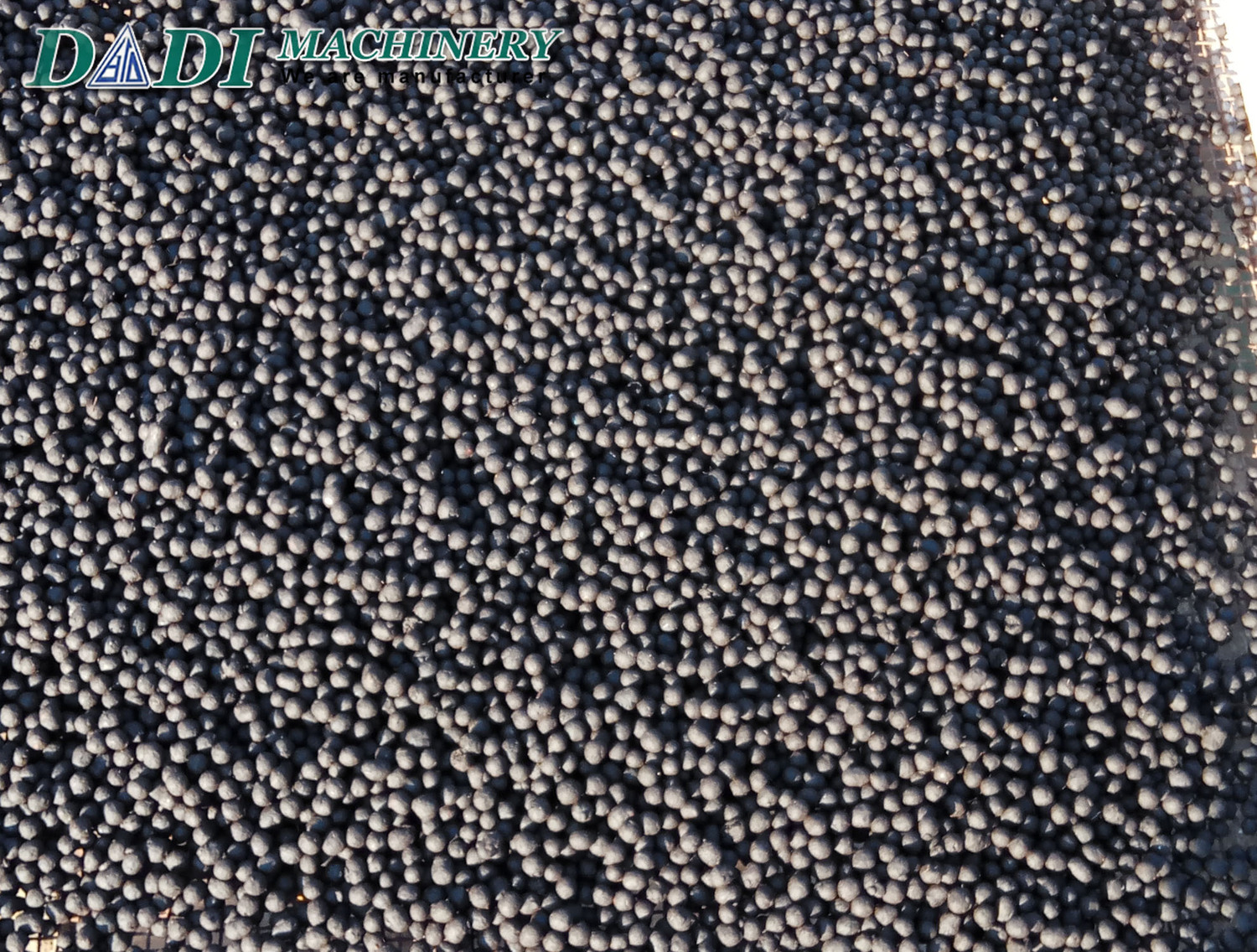

Our KHL-700 organic fertilizer ball granulator can make the following materials into ball shape as organic fertilizer granules :


1. Turfs, lignite, sludge, pond sludge,Sucrose slag,starch pulp as materials can be made into granules;

2. Chicken manure ,duck manure , pig manure , sheep dung , deer manure ,cow dung and earthworm cast as materials can be made into granules ;

3. Bean cakes ,Vinasse slag, Biogas residue , Fruit residue ,palm oil residue as the main materials can be made into granules;

4. Residues of urban rubbish or sewage treatment plants as materials can be made into granules.

5. Organic materials mix with mineral materials .

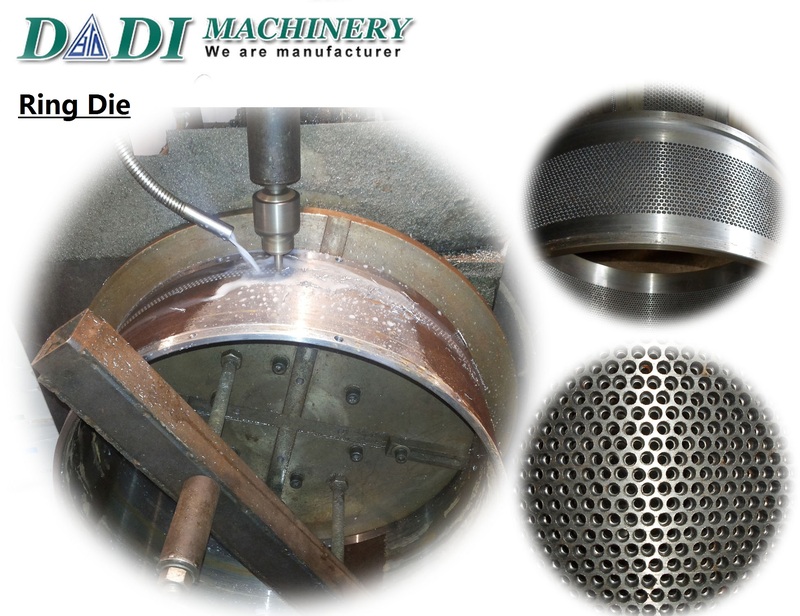

Organic Fertilizer ball granulator include the ring die and rollers system :

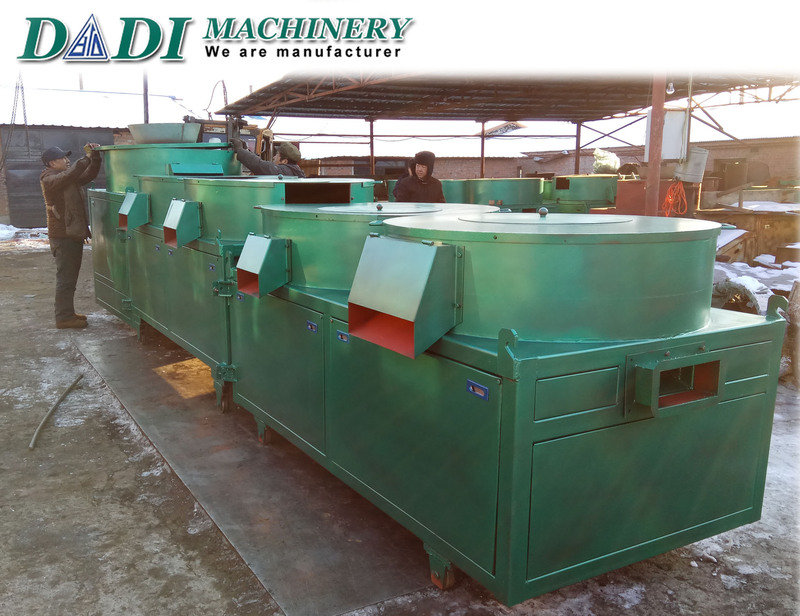

KHL-700 organic fertilizer ball granulator from Harbin Dadi Machinery
