Product Detail

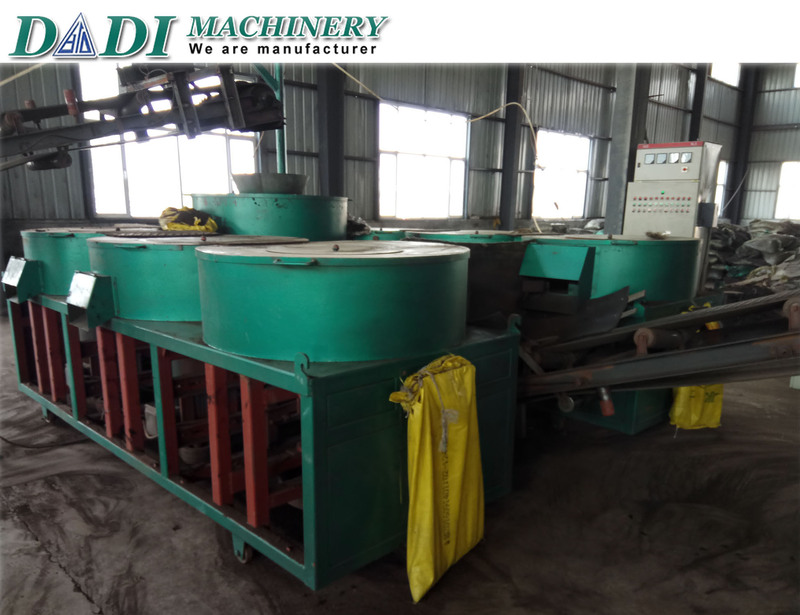

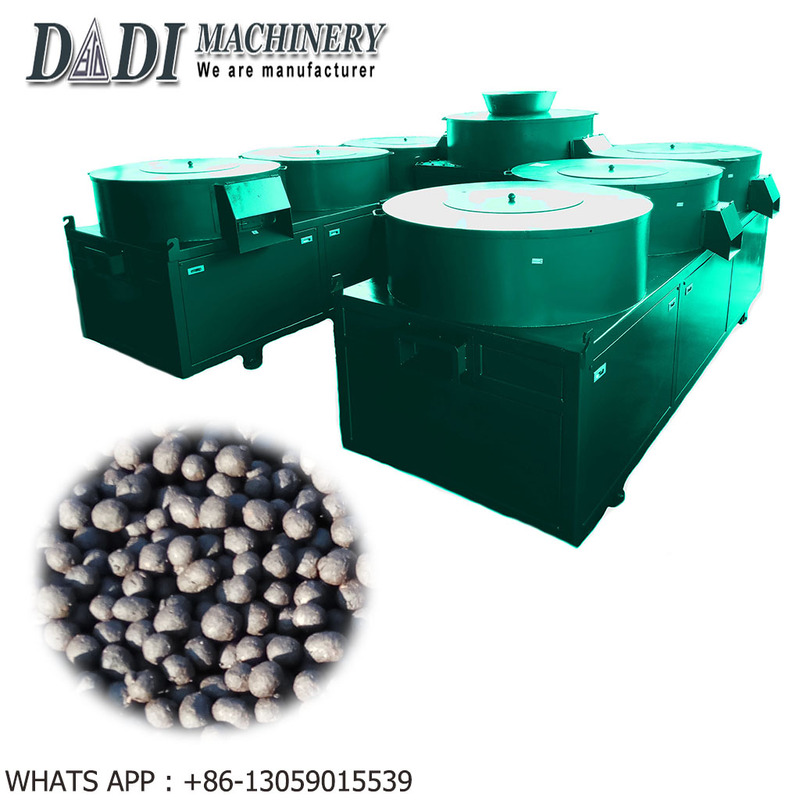

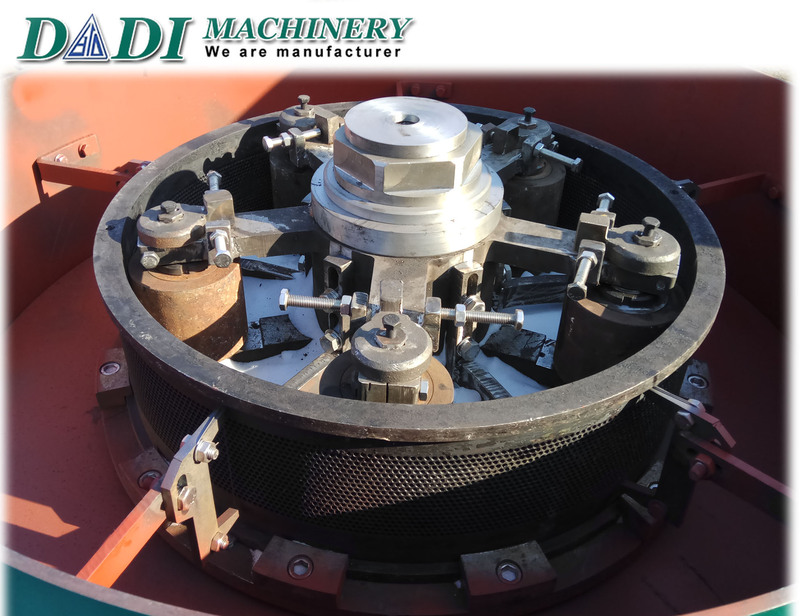

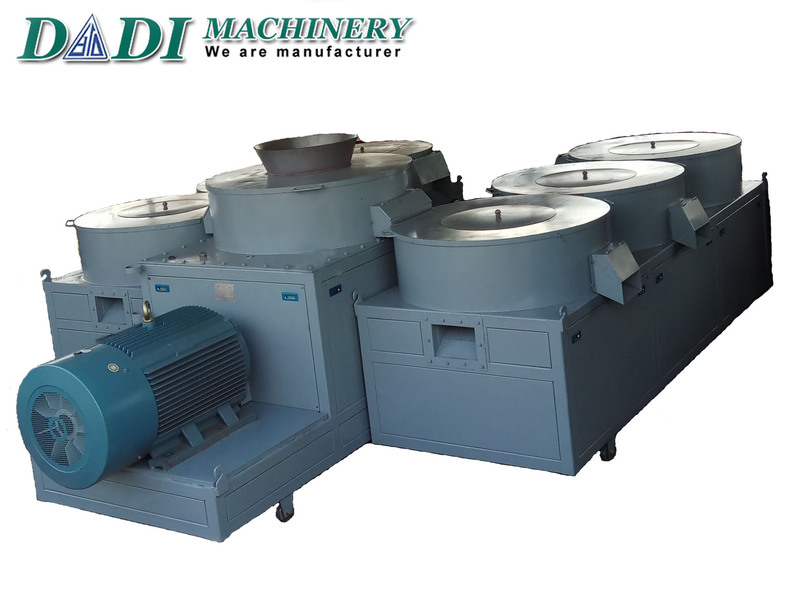

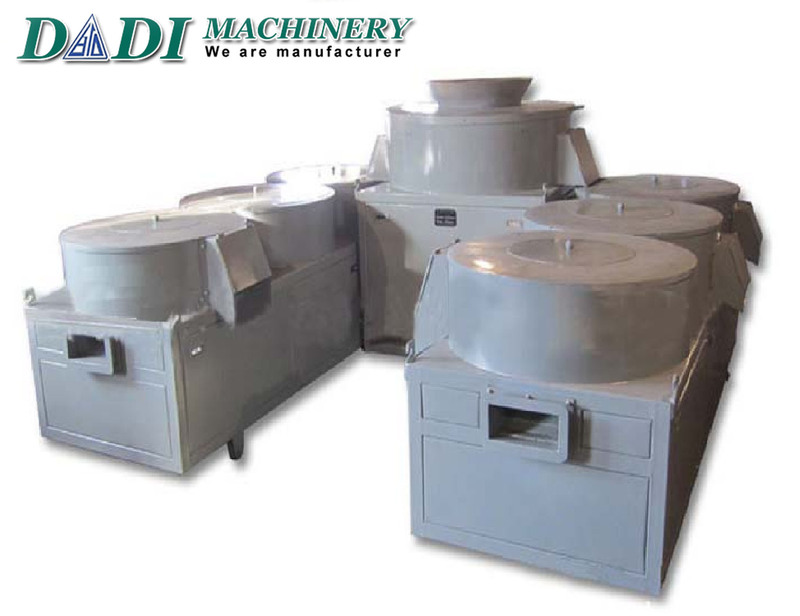

Bio Organic Fertilizer Granulator
Capacity : (T/H): 6-8
materials particle size:(mm): 0.3-0.5
Power: KW: 167 kw
Model: KHL-800
Detail

KHL-800 Bio Organic Fertilizer Granulator

You can also find the Bio Organic Fertilizer Granulator working video from You tube " https://youtu.be/CkG2mieFoAE "




Model :

KHL-800

Capacity: T/h

7-9

Raw material moisture content required:   %

30-35

Feed material particle size required (mm)

0.3-0.5

Pellet. rate:%

>90

Voltage : V

380

Pell. dia.: mm

3.5-5.5

Power: KW

160-180

Total weight:Kg

7000

Size: mm

6500-3800-2000

Range of Application:

The series of Bio Organic Fertilizer Granulator ( Ring Die Granulator) can make the following raw materials into granules :

1. Turfs, lignite, sludge, pond sludge,Sucrose slag,starch pulp as materials can be made into granules;

2. Chicken manure ,duck manure , pig manure , sheep dung , deer manure ,cow dung and earthworm cast as materials can be made into granules ;

3. Bean cakes ,Vinasse slag, Biogas residue , Fruit residue ,palm oil residue as the main materials can be made into granules;

4. Residues of urban rubbish or sewage treatment plants as materials can be made into granules.

Bio Organic Fertilizer Granulator

Bio Organic Fertilizer Granulator
